Cartridge Filling Production Line

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
FEATURES

Brief Introduction




IVEN cartridge filling production line (carpule filling production line) welcomed a lot for our customers to produce cartridges/carpules with bottom stoppering, filling, liquid vacuuming (surplus liquid), cap adding, capping after drying and sterilizing. Full safety detection and intelligent control to guarantee stable production, like no cartridge/carpule, no stoppering, no filling, auto material feeding when it is running out.

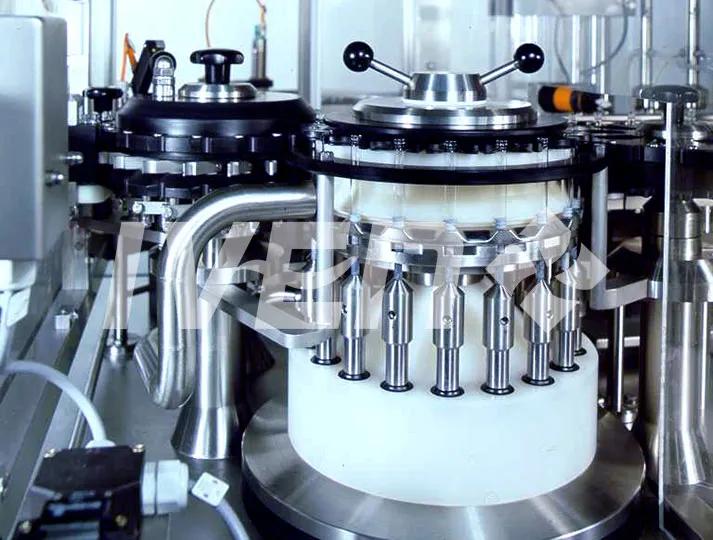

shanghai iven Cartridge Filling Machine



Working Process


Cartridges/Carpules feeding wheel after sterilization ---- Bottom part stoppered --- Conveyed to filling station --- Filled the 2nd time to full and vacuuming the redundant solution --- Conveyed to the capping station --- Conveyed to cartridges/carpules collection plate.



Cartridge Filling Production Line shanghai iven



Technical Features


1. Adopt the world’s latest technology, strictly make in accordance with GMP standard with compact structure.
2. Finish stoppering, filling, capping automatically.
3. All parts contact with medical solution adopt 316L S/S or the material which has no chemical change with drugs.
4. Servo motor operating parameters can be set freely according to filling volume and running speed, efficiently enhance filling precision.
5. Easy to change the specification part.
6. No cartridge/carpule no stoppering; no cartridge/carpule no filling; no cartridge/carpule no capping.
7. Auto detection function for stopper and aluminium cap.
8. Auto shutdown protection when open the door.
9. The reset button is available.



Configuration


No

Item

Brand & Material

1.

Servo motor

Schneider

2.

Touch Screen

Mitsubishi

3.

Ball screw

ABBA

4.

Breaker

Schneider

5.

Relay

Panasonic

6.

Filling pump

Ceramic pump

7.

Switching power supply

Mingwei

8.

Solution contact part

316L



PARAMETERS

No

Item

Description

1.

Applicable range

1-3 ml cartridge

2.

Production capacity

80-100 cartridges/min

3.

Filling heads

4

4.

Vacuum consumption

15m³/h, 0.25Mpa

5.

Stoppering heads

4

6.

Capping heads

4

7.

Power

4.4kw 380V 50Hz/60Hz

8.

Filling accuracy

≤ ± 1%

9.

Dimension( L*W*H)

3430×1320×1700mm
