Product Detail
Introduction
The secondary packing production line for pharmaceutical and medical is mainly consisted of cartoning machine, big case cartoning, labeling, weighing station and also palletizing unit and Regulatory Code System etc. Once we accomplished the production process in pharmaceutical and medical Secondary Packing, the products will be transferred into the warehouse. The secondary packing production line for pharmaceutical and medical is fully automatic controlled, with high speed and stability running. As well as the optional date batch number printer and manual insertion device, Multi-function packing operation, all kinds of complex packing work completed at the same time.
Product Video
Detailed Description
The secondary packing production line for pharmaceutical and medical meets with the high level capacity and realizes automatic transportation and automatic sealing. Complies with GMP and other international standards and design requirements. For different packing products equipped with different packing grips. The whole packaging process is transparent and visible. Production process monitoring system ensures smooth maintenance of equipment. Super long carton storage bit, can store more than 100 cartons. Full servo control. With industrial robots suitable for all kinds of secondary packing production lines in pharmaceutical and medical productions.
Introduction of Product Operation Steps

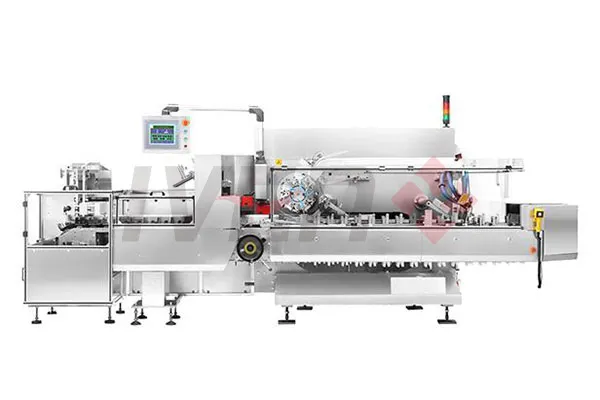

Step 1: Cartoning machine
1. Product feeding into the cartoning machine 2. Automatically carton box unfolding 3. Feeding the products into the cartons, with leaflets 4. Sealing the carton
Step 2: Big case cartoning machine
1. The products in cartons feeding into this big case cartoning machine 2. Big case unfolding 3. Feeding products into big cases one by one or layer by layer 4. Seal the cases 5. Weighing 6. Labeling

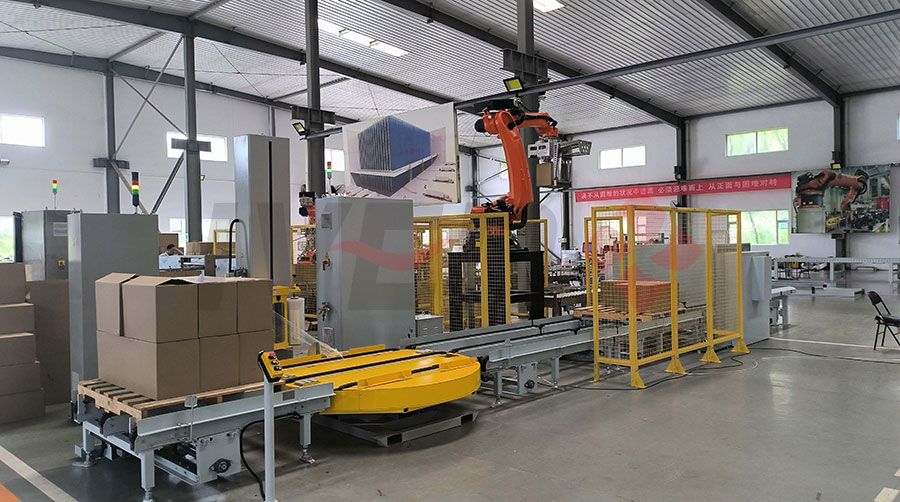

Step 3: Automatic palletizing unit
1. The cases transferred via the auto logistic unit to the automatic palletizing robot station 2. Palletizing automatically one by one, which palletizing design meets the users' personalized needs 3. After palletizing, the cases will be delivered into the warehouse by manual way or automatically
Advantages
Troubleshooting display.
Easy to operate.
Small space occupied.
Quick and accurate actions.
Full servo control, more stable running.
Man-machine cooperation robot, safety and maintenance-free, low energy consumption.
Customization to meet different customers' requirements.
Visual camera to achieve automatic identification of multi-specification medicine bags.
With multi-material temporary storage, the bag will be placed in the temporary storage box.
Full servo supply disk system to achieve seamless supply of sterilizing disk.
Mitsubishi and Siemens PLC is small, high-speed, high-performance.
Suitable for multiple basic components of the connection, simulation control, positioning control, and other special uses.
It is a set of PLC that can meet a wide range of needs.

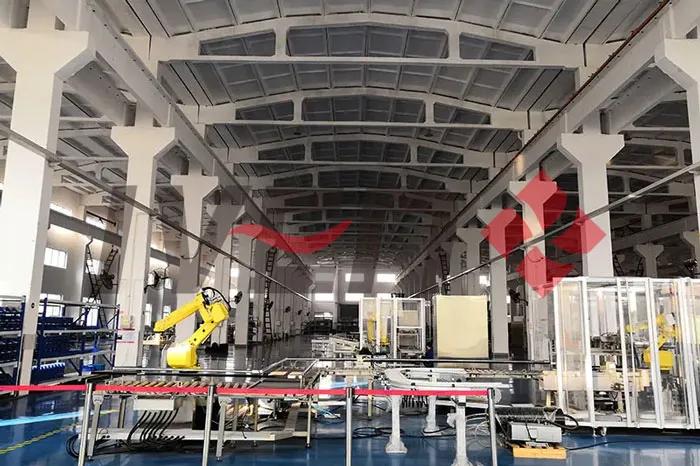

Example of Case
Technical Parameters of Cartoning Machine
Specifications
Heads amount of opening carton
5
Speed
200-220 box/min
Power supply
380V 50Hz
Main motor
2.2 Kw
Vacuum pump
1.3 Kw
Conveyor belt and others
1 Kw
Air compressed
Consumption
40 NL/min
Pressure
0.6 MPa
Weight
3000 Kg
mm
MIN
MAX
MAX
MAX
A
20
70
120
150
B
15
70
70
70
C
58
200
200
200
Chain pitch
Standard
Standard
1/3
1/2
Carton
≥300g/m2 International machinery carton
Leaflet
50g～70g/m2 、60 g /m2 is the best
The carton size limitation is according to the above chart, if too big size change, need to change push rod, suck nozzle on cartooning machine etc.
Cartoner（Standard Electricity）
No.
Item
Name
Description
Qty
Remarks
Brand
SIEMENS PLC& COMPONENTS
1
CPU226
PLC/CPU
6ES7 216-2AD23-0XB8
1
S7-200
SIEMENS
2
PLC lithium battery
6ES7 29I-8BA20-0XA0
1
SIEMENS
3
Expand I-O
6ES7 223-1BL22-0XA8
1
16points I-O
SIEMENS
4
Circuit Line connector
6ES7972-0BA12-0XA0
2
without programming port
SIEMENS
5
Switch Power
HF-200W-S-24
1
200W DC24V
HENGFU
6
Touch Screen
KTP1000
1
According to customer
SIEMENS
Main Switch、
Motor protection switch、Fuse
1
QS1
Main Swithc
P1-32/EA/SVB/N
1
32A
MOELLER
2
QF1
Three pole switch
C65N C32/3P
1
32A
Schneider
3
QF3
Single pole switch
C65N C4/1P
1
4A single pole
Schneider
4
QF4.5
Single pole switch
C65N C10/1P
3
10A single pole
Schneider
5
QF6
Motor protection switch
PKZMC-4
3
2.5-4A
MOELLER
6
auxiliary contact
NHI-E-11-PKZ0
3
1NO+1NC
MOELLER
7
three phase power extension socket
B3.0/3-PKZ0
1
Connections 3
MOELLER
Auxiliary / Relay
1
auxiliary contact
DILM09-10C
3
Grommet AC220V
MOELLER
2
Relay
MY2N-J
9
8+1（backup）DC24V
OMRON
3
Relay plate
PYF08A-E
9
8+1（backup）DC24V
8+1（backup）DC24V
SIEMENS FREQUENCY CONVERTER
/Oriental Motor
1
Frequency conveter
6SE6440-2UD23-OBA1
1
Main motor 3KW
SIEMENS
2
9 pins plug
D-shape 9 pins plug
1
Frequency converter communication use
3
Frequency conveter
FSCM03.1-OK40-1P220-NP-S001-01V01
1
Conveyer belt
Bosch Rexroth
4
Step motor
ARLM66BC
4
Oriental Motor
5
Step motor drive
ARLD12A-C
4
Oriental Motor
Button
1
Start Button
ZB2-BA331C
1
Start Button
Schneider
2
Stop Button
ZB2BA432C
1
Stop 1NC
Schneider
3
Reset
ZB2-BA6C
1
Reset blue button
Schneider
4
Emergency
ZB2-BS54C
1
Stop Button
Schneider
5
Jogging
ZB2-BA5C
2
Jogging
Schneider
photoelectric、proximity switch brand is "TURCK", "BANNER", "P+F", "SICK". ENCODER IS MEYLE FROM GERMANY. Vacuum pump is BUSCH GERMANY. Main motor, Reduction box is SEMENS&TAIWAN WANXIN
Technical Parameters of Box Unfolding - Feeding In - Sealing Machine
Description
Details
Packing speed
1-6boxes/min (based on box size)
Machine size
5000*2100*2200mm(L*W*H)
Shipping box size
L:400-650mm W:200-350mm H:250-350mm
Primary carton feeding height
800-950mm
Shipping box outputting height
780-880mm
Power supply
220V/380V, 50/60HZ, 5.5KW
Air source requirement
0.6-0.7Mpa
PLC
Siemens
Servo motor
Siemens, 5pcs
HMI
Siemens
Pneumatic parts
SMC
Low pressure parts
Schneider
Machine frame
Seamless square tube
External protection
Organic glass, stop during door open detection
Technical Parameters of Carton Corner Posts Labeling Machine
Label roll outer diameter 320 mm, paper roll inner diameter 76 mm
5
Control unit
PLC S7-200smart Siemens
6
Printing
Zebra printer Print Resolution: 300dpi; Print area: 300*104mm Meet existing print area size requirements and provide confirmation of applicable print area size range
7
Operation control (analysis)
7-inch color LCD screen and touch panel. The equipment can connect with the database, print and label the data in real time, and realize multi-level coding association. RS232 and USB port
8
Adjustments
Fully automatic adjustment
9
Print content
Can print ordinary bar code, text, variable data, two-dimensional bar code and RFID label;
10
Communication
The device can communicate with the tracing code system, receive the printing instruction of the tracing code system, and feedback the signal to the tracing code system after the printing is finished, so as to avoid the tracing code confusion.
11
Alarm
The equipment is equipped with acousto-optic alarm lamp, when abnormal occurs in the production process, the equipment alarm and stop, and display alarm information on the touch screen, which is convenient for fault inspection and troubleshooting.
Support order samples, customization, wholesale direct, and complete payment.
If the product you look for does not have corresponding customized content, pls fill out the
form below to contact us, and we will reply ASAP.
