Auto-clave

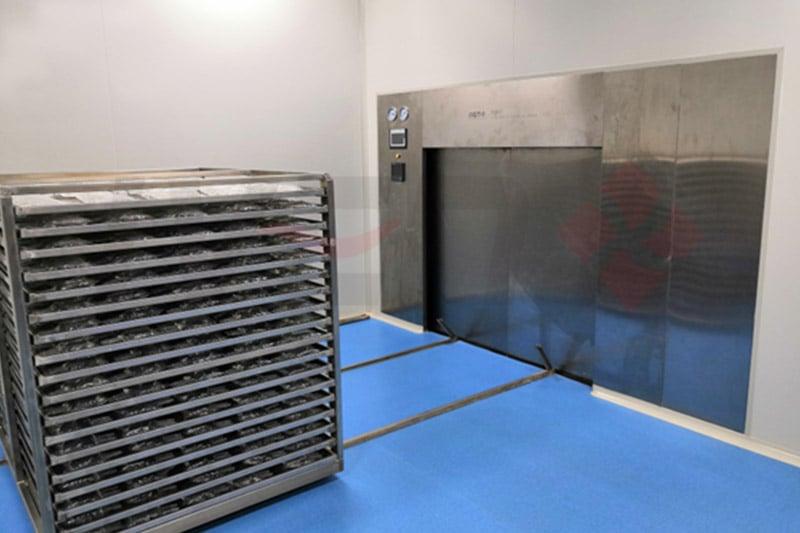

This autoclave is applied widely to high-and-low temperature sterilizing operation for liquid in glass bottles, ampoules, plastic bottles, soft bags in pharmaceutical industry. Meanwhile, it is also suitable for foodstuff industry to sterilize all kinds of sealing package.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Brief Introduction:

Fill with circulation water (Pure water) to a preset level. Heat up with circulation water. During heating, a preset differential ballast pressure above the relevant saturated steam pressure is maintained in the chamber by compressed air that prevents damage of the product containers. Sterilization for a preset time under a preset differential ballast pressure with a guaranteed temperature distribution inside the product of ±1℃.Cooling with primary circulation water, which is pumped through the cooling water cooled external heat exchanger and sprayed over the load. During the cooling process a preset differential ballast pressure above the relevant saturated steam pressure or a fixed ballast pressure is maintained in the chamber.



The compressed air over pressure prevents damage of the product containers. Drainage of circulation water either completely or to a certain level for further cycles. Depressurizing of chamber to atmospheric pressure (release of door interlock).



According to adopting computers and high-performance devices, it increasingly improves the stability and intelligence of the machine, and makes it more suitable for high-intelligent management system of modern workshops. Meanwhile, refined manufacturing, world-famous configurations and good after service make you more satisfactory.

Features

1. Heat efficiency, good temperature uniformity, wide temperature range.


2. Sterilizing medium runs in a closing circulating system, which prevents second pollution during operating.

Technical Parameters

1. Design pressure : 0.245Mpa
2. Design temperature : 139℃
3. Working pressure : 0~0.22Mpa
4. Working temperature : 60~134℃
5. Heat uniformity : ≤±1℃
6. Energy supply



Item

Steam

Deionized water

Cooling water

Compressed air

Power supply
AC380V 50HZ

Energy pressure

0.4-0.8MPa

0.2-0.3MPa

0.2-0.3MPa

0.6-0.8MPa

Pipe diameter

DN100

DN50

DN100

DN50

30-100KW
