Reverse osmosis is the eighties developed a membrane separation technology, which mainly use the semipermeable membrane permeation principle, to give it a certain way by applying a pressure on the natural infiltration direction against the force of the water in the concentrated solution dilute the solution to penetrate this way is called reverse osmosis. By the components of the device is reverse osmosis reverse osmosis unit.
Reverse osmosis is the eighties developed a membrane separation technology, which mainly use the semipermeable membrane permeation principle, to give it a certain way by applying a pressure on the natural infiltration direction against the force of the water in the concentrated solution dilute the solution to penetrate this way is called reverse osmosis. By the components of the device is reverse osmosis reverse osmosis unit.
One, two reverse osmosis + EDI preparation (purified water process characteristics)
1 Suitable for raw water salinity compared Height regions;
2 product water conductivity is better;
3 one-time investment of less;
4 lower operating costs;
5.Stability.
Model |
Water yield (m³/h) |
Minimum water(m³/h) |
Desalinated water(%) |
Working temperature(℃) |
FST0.5-A |
0.5 |
1.0 |
98 |
5-35 |
FST1-A |
1.0 |
1.5 |
98 |
5-35 |
FST2-A |
2.0 |
3.0 |
98 |
5-35 |
FST3-A |
3.0 |
4.5 |
98 |
5-35 |
FST4-A |
4.0 |
6.0 |
98 |
5-35 |
FST6-A |
6 |
8.5 |
98 |
5-35 |
FST8-A |
8 |
11.5 |
98 |
5-35 |
FST10-A |
10 |
14 |
98 |
5-35 |
FST15-A |
15 |
21 |
98 |
5-35 |
FST20-A |
20 |
28 |
98 |
5-35 |
FST25-A |
25 |
35 |
98 |
5-35 |
FST30-A |
30 |
42 |
98 |
5-35 |
1.Manufactured according to the criteria of JB20031-2004 Pure Steam Generator, our LCZ pure steam generator uses steam heating to produce high-purity steam without heat source. The generator is applicable to sterilization and can effectively prevent secondary pollution resulting from heavy metal, heat source and other impurity heaps. The equipment is characterized by advanced technology, unique design, compact structure, rational configuration and good heat preservation to the shell, which brings about lower heat loss, higher heat efficiency, smaller floor space coverage, easy operation and installation and good adjustability. Our generator complies with the GMP criteria of the State and has been widely applied to the sterilization in health care, pharmaceuticals and food industry.
2. Component part: water source and level purifying water tank
The tank heats the deionized water by steam from the boiler so as to generate high-purity steam. Preheater and evaporator of the tank adopt the intensive seamless stainless steel tube and with good heat transfer. The tank can automatically adjust water inflow according to the steam temperature in the boiler so as to increase the pure steam output. In addition, high-purity steam with different backpressures and flow rates can be obtained by adjusting the outlet valve.
3. This equipment is available in three types, i.e. full-automation, semi-automation and manual operation to meet the requirements of different users.
Model |
Total Power(KW) |
Pure steam production(L/h) |
Heating steam consumption(kg/h) |
Purified water consumption(kg/h) |
Dimensions(mm) |
LCZ-100 |
0.75 |
≥100 |
125 |
120 |
1150×550×2600 |
LCZ-200 |
0.75 |
≥200 |
250 |
240 |
1150×900×2700 |
LCZ-300 |
0.75 |
≥300 |
375 |
360 |
1400×900×2700 |
LCZ-400 |
0.75 |
≥400 |
500 |
480 |
1400×950×2700 |
LCZ-500 |
0.75 |
≥500 |
630 |
600 |
1500×1050×2900 |
LCZ-600 |
0.75 |
≥600 |
755 |
720 |
1600×1100×2900 |
LCZ-700 |
0.75 |
≥700 |
875 |
840 |
1700×1100×2900 |
LCZ-800 |
0.75 |
≥800 |
1005 |
960 |
1750×1100×3000 |
LCZ-1000 |
1.1 |
≥1000 |
1260 |
1200 |
1750×1100×3000 |
LCZ-1500 |
1.1 |
≥1500 |
1890 |
1800 |
1850×1200×3200 |
LCZ-2000 |
1.1 |
≥2000 |
2500 |
2400 |
2350×1250×3300 |

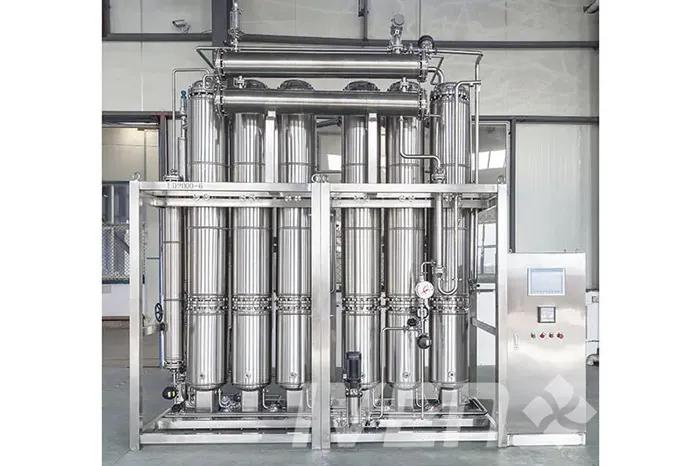

Our LD multi-effect water distillator is designed and manufactured according to the criteria of GB150-1998 Steel Pressure Vessel and JB20030-2004 Multi-effect Water Distillator. All the components and parts of the equipment are made of the 304 or 316L stainless steel. The distilled water generated from the water distillator is of high purity and without heat source, which is in full compliance with all the quality indicators of water for injection stipulated in the Chinese Pharmacopoeia (2010 edition). This equipment proves to be an ideal choice for manufacturers of such pharmaceuticals as various blood products, injections, and infusion solutions, biological antimicrobial agents as well as drinking distilled water.
Model |
Motor power (kw) |
Water yield (L/h) |
steam consumption (kg/h) |
raw water consumption (kg/h) |
outline dimension (mm) |
LD500-6 |
0.75 |
≥500 |
≤120 |
550 |
2190×1150×3000 |
LD750-6 |
0.75 |
≥750 |
≤180 |
825 |
2580×1240×3400 |
LD1000-6 |
1.1 |
≥1000 |
≤240 |
1100 |
2580×1240×3500 |
LD1500-6 |
1.1 |
≥1500 |
≤360 |
1650 |
3240×1300×4000 |
LD2000-6 |
2.2 |
≥2000 |
≤480 |
2200 |
3240×1300×4100 |
LD3000-6 |
2.2 |
≥3000 |
≤720 |
3300 |
3680×1500×4200 |
LD4000-6 |
2.2 |
≥4000 |
≤960 |
4400 |
4300×1700×4600 |
LD5000-6 |
4.0 |
≥5000 |
≤1200 |
5500 |
4400×1700×4600 |
LD6000-6 |
4.0 |
≥6000 |
≤1400 |
6600 |
4600×1750×4800 |
LD7000-6 |
4.0 |
≥8000 |
≤1920 |
8800 |
5000×1850×4900 |
LD10000-6 |
4.0 |
≥10000 |
≤2400 |
11000 |
5600×2050×5200 |

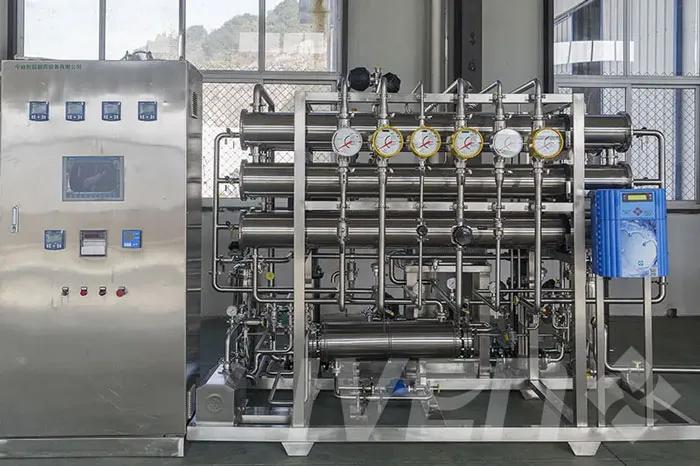

1.Reverse osmosis is a kind of membrane separation technology developed since the 1980s.
2.It mainly uses the osmosis principle if semi-transparent membrane. A pressure that is called reverse osmosis.
3.The device that is composed of reverse osmosis components is called reverse osmosis device.
Primary and secondary reverse osmosis+EDI
1.Applied in areas where the salinity of raw water is high;
2.Good electric conductivity of water produced;
3.Low investment;
4.Low operating cose;
5.Good stability.
Item |
Water Yield (m3 /h ) |
Minimum Water Inflow (m3 /h ) |
Desalted Water (%) |
Working Water Tempterature (°C) |
FST0.5-A |
0.5 |
2.0 |
98 |
5-35 |
FST1-A |
1.0 |
2.5 |
98 |
5-35 |
FST2-A |
2.0 |
3.6 |
98 |
5-35 |
FST3-A |
3.0 |
5.0 |
98 |
5-35 |
FST4-A |
4.0 |
6.5 |
98 |
5-35 |
FST6-A |
6.0 |
8.5 |
98 |
5-35 |
FST8-A |
8.0 |
11.0 |
98 |
5-35 |
FST10-A |
10.0 |
13.5 |
98 |
5-35 |
FST15-A |
15.0 |
20.0 |
98 |
5-35 |
FST20-A |
20.0 |
26.0 |
98 |
5-35 |
FST25-A |
25.0 |
35.0 |
98 |
5-35 |
FST30-A |
30.0 |
40 |
98 |
5-35 |
